Electromagnetic Levitation System
The electromagnetic levitation system controls the magnetic field generated by an electromagnet to levitate a small magnet in midair. The small magnet levitates in the air indefinitely without any disturbance. The vertical position of the levitating magnet is measured using a linear Hall effect sensor and the current in the electromagnet is controlled using a microcontroller. The system has three push buttons to adjust the vertical position of the levitating magnet and to apply a sinusoidal, square or sawtooth reference signal.
The magnetic levitation system is available as a kit or fully assembled unit. The system works with both the 1/2" N42 sphere magnet and 1/2" x 1/8" N42 disc magnet (or three disc magnets stuck together). This is a great science fair project for students. It is recommended for ages 12 and up.
Features
- Air gap: ~ 0.75" (2.0 cm)
- Supply voltage: 7.5 - 12 V
- Supply current: ~ 50 mA
- Size: ~ 2.5" x 2.5" x 6.0" (6.35 cm x 6.35 cm x 15.24 cm)
- Weight: ~ 1.0 lb (0.5 kg)

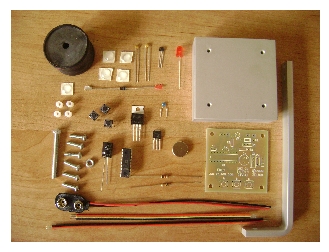

Basic Kit
- All electrical and mechanical parts (comes with a disc magnet)
- Detailed assembly and operating instructions including the circuit schematic (electronic copy via email)
- Requires a 7.5 V power adapter (not included) or a 9 V battery (not included)
- A suitable power adapter is available below
- Please visit the Components page if you would like to order a sphere magnet as well
- All components are tested before shipment
- Some components are sensitive to static electricity and excessive heat, and may be damaged if not handled properly
- Assembling the unit requires basic soldering skills
- If you do not have any soldering experience, please consider buying the assembled unit
$48.00

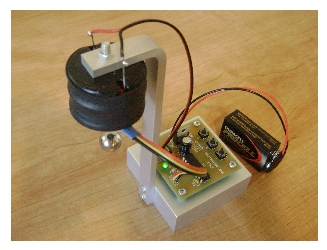

Assembled Unit
- Detailed operating instructions including the circuit schematic (electronic copy via email)
- Requires 7.5 V power adapter (not included) or a 9 V battery (not included)
- A suitable power adapter is available below
- Please visit the Components page if you would like to order a sphere magnet as well
-
Each unit is fully tested before shipment
$59.00
- Input: 100 − 240 V, 50 / 60 Hz, AC
- Output: 7.5 V, 1 A, DC
- Size: 6.5 cm x 4.2 cm x 2.5 cm, 140 cm cord length
- USA plug type (can be used anywhere in the world with a suitable plug adapter, European plug type is also available upon request)
$10.00
- Voltage (DC and AC), current and resistance measurement
- Diode, transistor and continuity check, test signal generation
- 12.6 cm x 7.0 cm x 2.4 cm, 150 g, 3.5 digit LCD display
- Includes a 9 V battery, test leads and user manual
$10.00
- 120 V, 30 W soldering iron with USA plug
- 2 m solder wire
$10.00
Payment and Shipping
- Credit Cards, PayPal, Wire Transfer or Money Order
- Shipment is via USPS worldwide
- Orders typically ship within the same day
- For 10 or more orders, please contact us for a discount
